TeXtreme® Carbon fabric 80 g/m² (PW, HT, bias cut) 100 cm

Технические характеристики

USA: width 39.37", weight 2.4 oz/yd²

Fibre type: Torayca® T700SC 12k / high strength fibre, tape width 20 mm

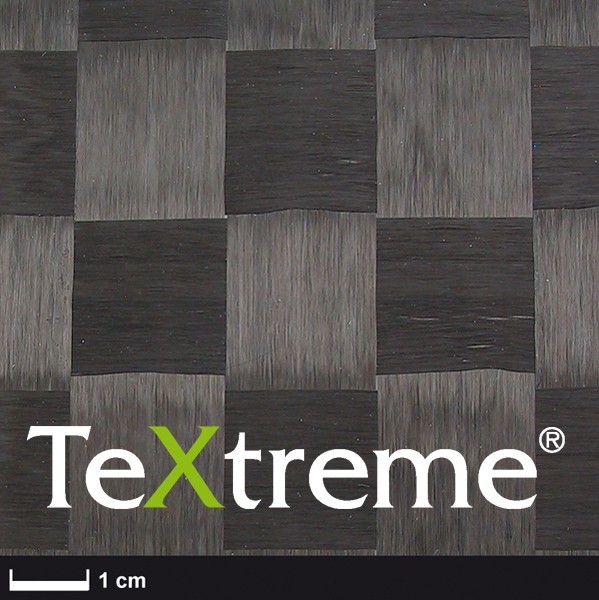

Plain weave
Width 100 cm

Calculated data for hand laminates with 35 volume percent fibres:
Resin consumption: 57.5 g/m², laminate thickness: 0.08 mm laminate weight: 137.5 g/m²

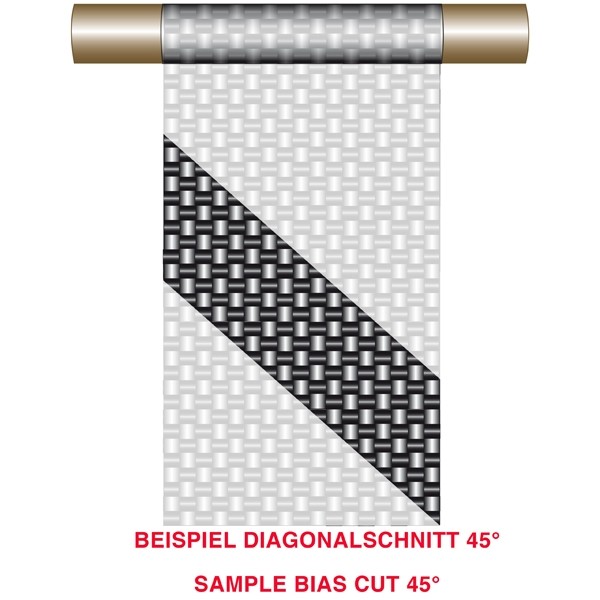

R & G now offers bias-cut fabrics, which are mainly used in the model aircraft as torsion reinforcement in wings and fuselages. It is not the fabric which is produced diagonally, but the beginning and end of a roll are cut at an angle of 45 °. This reduces the waste to a minimum and so also large areas can be realized even with small roll sizes.

Information about bias cut eWiki.
