Технические характеристики

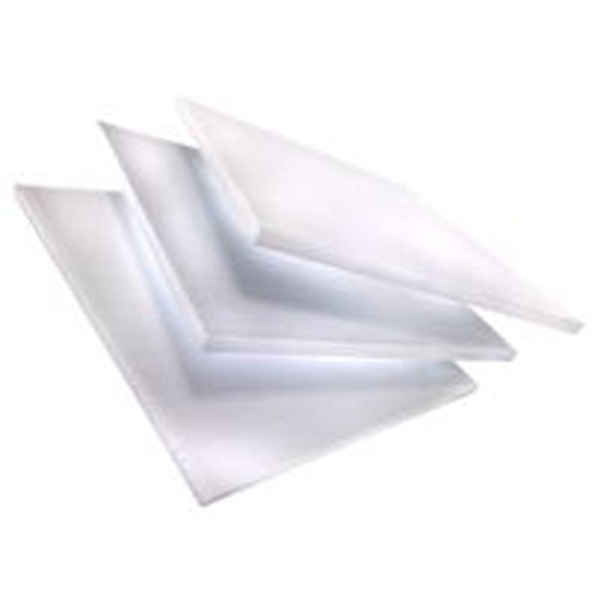

Closed-cell, thermoplastic, structural foam designed for use with all resin systems and processing technologies, including hand lay-up, vacuum bagging, resin infusion and prepreg.
It is easily machined and thermoformed. Suitable for a wide range of structural composite applications due to advantageous properties especially compression strength and modulus, and excellent fatigue and creep characteristics.
Density: 60 kg/m³
- Easy to process with all types of resin and different lamination processes
- Best thermal stability in process up to 150 °C (212 °F). no after-expansion
- Excellent fatigue and creep strength
- High degree of fire resistance (FAR25.853; NF16.101; DIN5510)
- Excellent chemical stability
- High compression strength and modulus
- Good tensile strength (skin-to-core bond)
- Excellent long term thermal stability up to 100 °C (212 °F)
- No water absorption
- Thermoformable
Application:
Wind energy
Shear webs, shells and nacelles
Marine
Transom, decks, hard spots, local reinforcements, interiors, stringers, engine beds
Road and Rail
Floors, sidewalls, interiors, engine covers
Industrial
Cover, containers, local reinforcements, x-ray tables, sporting goods
