High core material for industrial applications with a fine cell structureSpecification:

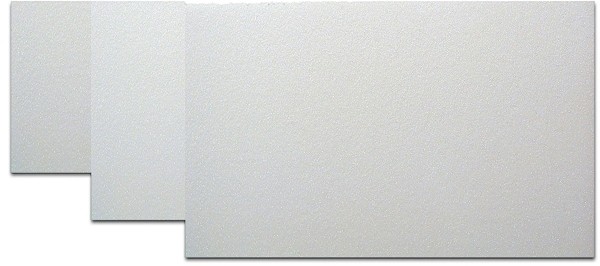

Closed cell foam PMI (polymethacrylimide, IG-F = Fine industrial grade, high performance core material for sandwich components
• Superior mechanical properties
• High heat distortion temperature and solvent resistance
• Thermoformable
• At low temperatures, low thermal conductivity
• Low thermal conductivity at low temperatures
• Very good strength values
• Very good dielectric properties
• Very good X-ray transparency
• Less resin absorption due to finer cell structure
• Natural colour white
Applications:
Automotive engineering: high-strength cabs (truck bodywork)
Medical engineering: X-ray treatment tables
Others: Sports articles, model construction, SMC parts sports aircraft construction
Technical data:
Apparent density (ISO 845): 75 kg/m³
Compressive strength(ISO 844): 1.5 MPa
Tensile strength (ISO 527-2): 2.8 MPa
Shear strength (DIN 53294): 1.3 MPa
Modulus of elasticity (ISO 527-2):92 MPa
Shear modulus (DIN 53294): 29 MPa
Flexural strength (ISO 1209): 2.5 MPa
Heat resistance (DIN 53424): 180 °C
In 2, 2.5, 3, 3.5, 4 and 16 mm thickness available.
