Технические характеристики
Heat deflection temperature: 140 °C
Carbon fibre sheets ECOTECH™ are made out of HT carbon fibre prepregs with a transparent epoxy resin matrix in press moulding. The edges of the plates are "rough sawn".

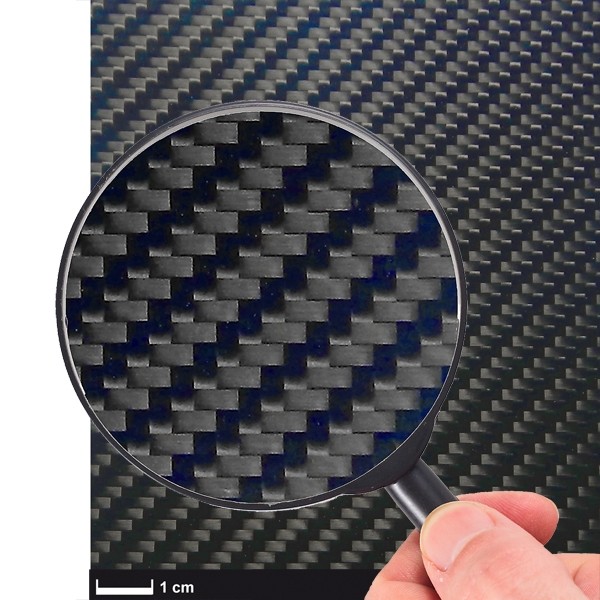

The surface layers consist of 3k-fabric style 452 in twill weave 2/2 (fabric prepreg CE 8201-200-45). Depending on sheet thickness the core layer consists of 3k-fabric and/or UD-non-crimp fabric 0°/90° (bidirectional).
Carbon fibre sheets ECOTECH™ can be milled, sawn or cut by water-jet. Please make sure to predrill the CFRP plates of the beam at the injection sites.
The sheets are cut to size (+/- 1 mm).
ECOTECH™ is a trademark of R&G
