VEC™ Wing-connector: GRP + CRP tube, Ø 31.2/Ø 30 x 800mm

Технические характеристики

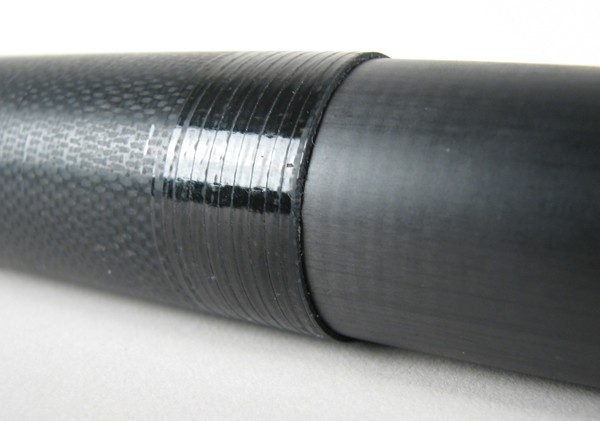

VEC™-Wing-connector with GRP and CRP tube

The VEC™-Wing-connector system consists of one GRP wing joining tube (outside) and one CRP wing tube (inside), they are high quality made and accurately fitting. The GRP tube fits completely over the CRP tube, the wing-connector is therefore telescopic.

Dimensions:
GRP tube (outside tube) outer-Ø (oder outside diameter) 31.2 mm, wall thickness 0.6 mm
CRP tube (inside tube) outer-Ø (oder outside diameter) 30.0 mm, wall thickness 0.9 mm

Tolerance: ca. ± 0.3 mm

Application:
Wing-connector system for big model airplanes, e.g. it is used to plug the wings onto the fuselage.

The VEC™-Wing-connector system can only be delivered complete, the individual tubes are not available.
