This vacuum pump is specially suited for the resin infusion process (RI).
Could be used for evacuating silicon moulding compounds additionally.

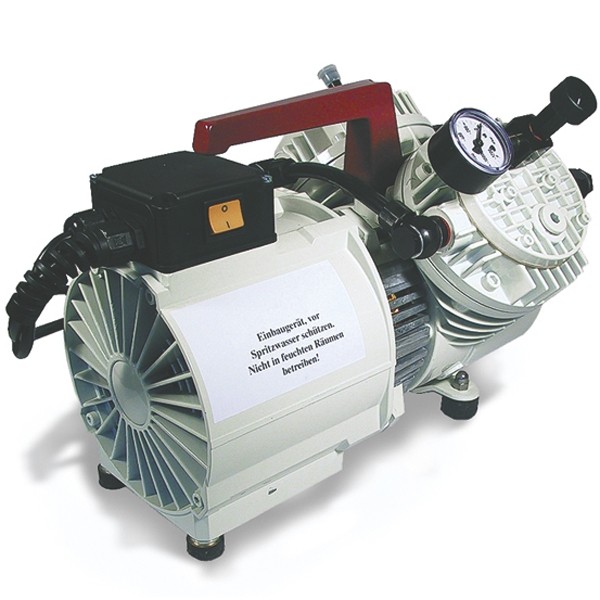

Diaphragm vacuum pump in a portable format. With integrated fine adjustment valve, pressure-vacuum gauge and silencer.
- Unadulterated evacuation and delivery of air
- Completely maintenance-free
- High continuous output with quiet running
- Excellent durability (> 5000 h)
- Suitable for continuous operation
- Electrical design in accordance with VDE (Association of German Electrical Engineers)
Applications:
Generation of oil-free compressed air and vacuum for evacuating, conveying, and compressing gases. Transferring measuring and analysing gase.
The vacuum pump is ideal for evacuating larger areas, e.g. in aircraft construction.
Technical data:
Suction capacity at normal pressure 30 l/min. • Residual pressure 13 mbar (respectively 0.987 bar partial vacuum) • motor rating (system of protection IP 20) 200 W • noise level 61 db(A) • current intake 1.5 A • max permitted gas and ambient temperature 40 °C • weight with housing 11.3 kg • pump head of aluminium, diaphragms / valves of neoprene / stainless steel • hose connection suitable for R&G pump hose inside/outside-Ø 6 mm/8 mm
More information
If the vacuum pumps used in a place where the air is not free of dust, so for example in a working space, where workpieces processed e.g. by grinding, we recommend to equip the vacuum pump with a particulate filter (R&G Vacuum filter/Universal filter 390 105-1/390 108-1). Otherwise there is a risk of dust or fine chips lodge themselves between the membranes in the vacuum pump and thereby the suction is greatly reduced. In such cases, the pump has to be returned to the manufacturer for repair. Often then, new membranes are installed.
